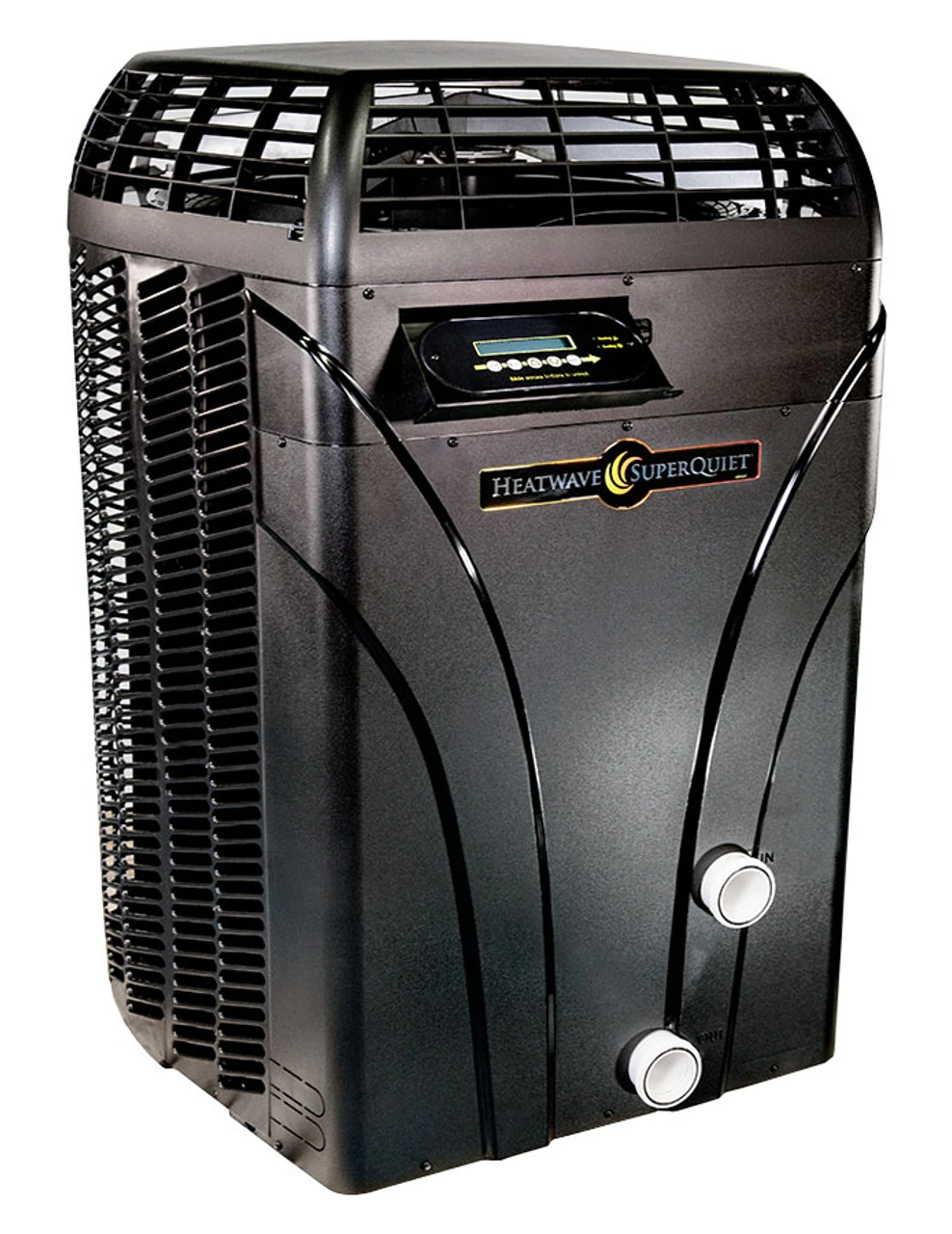

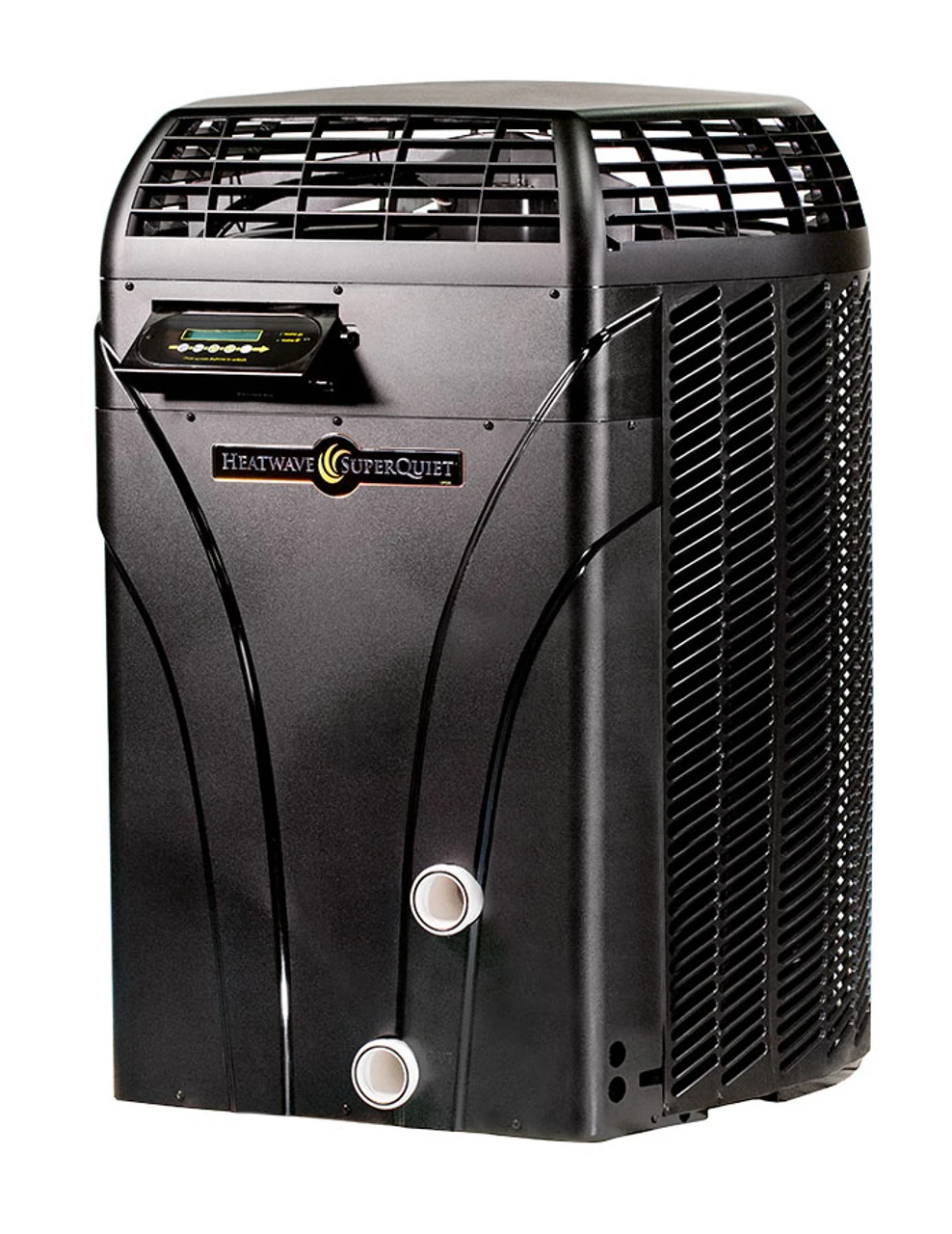

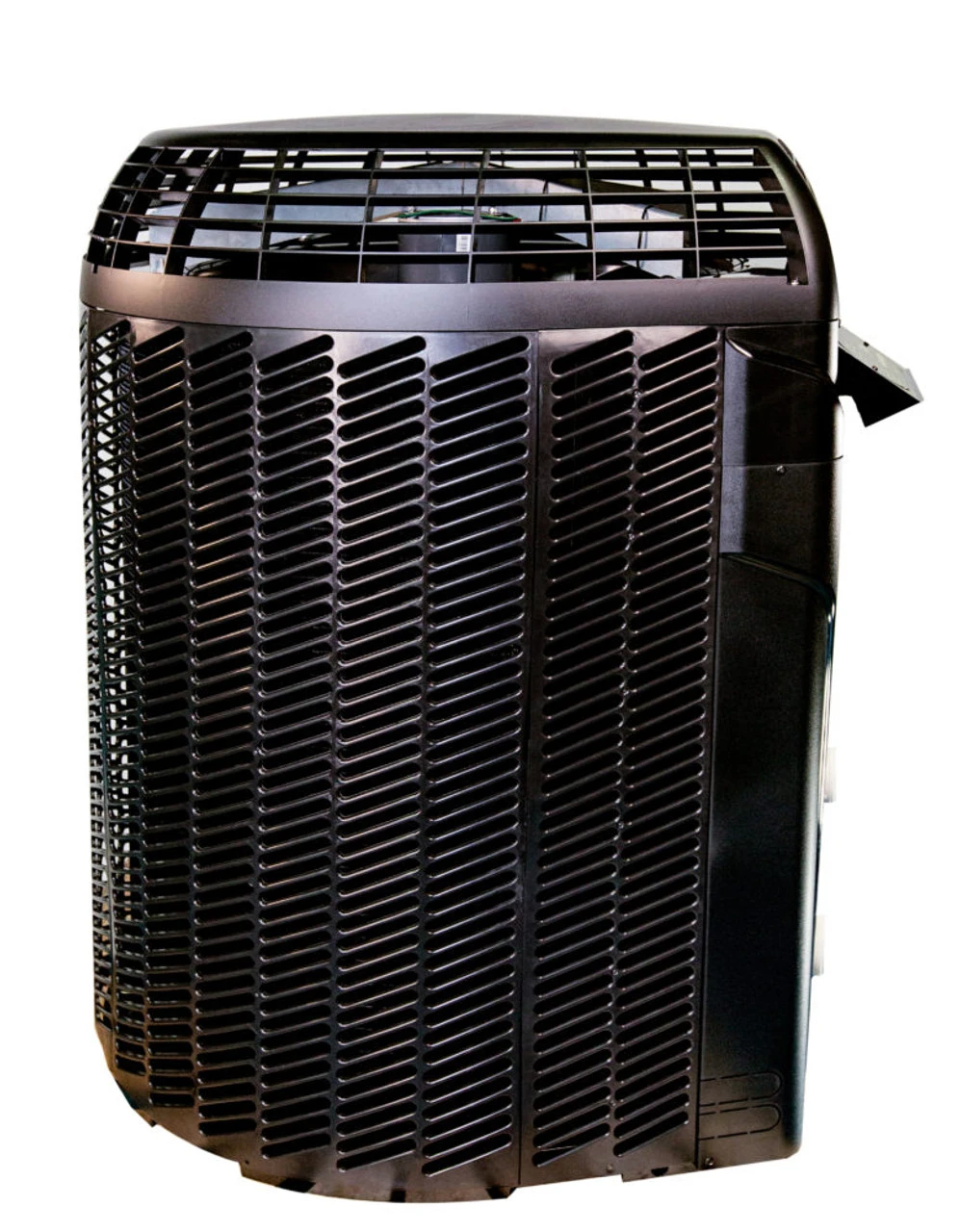

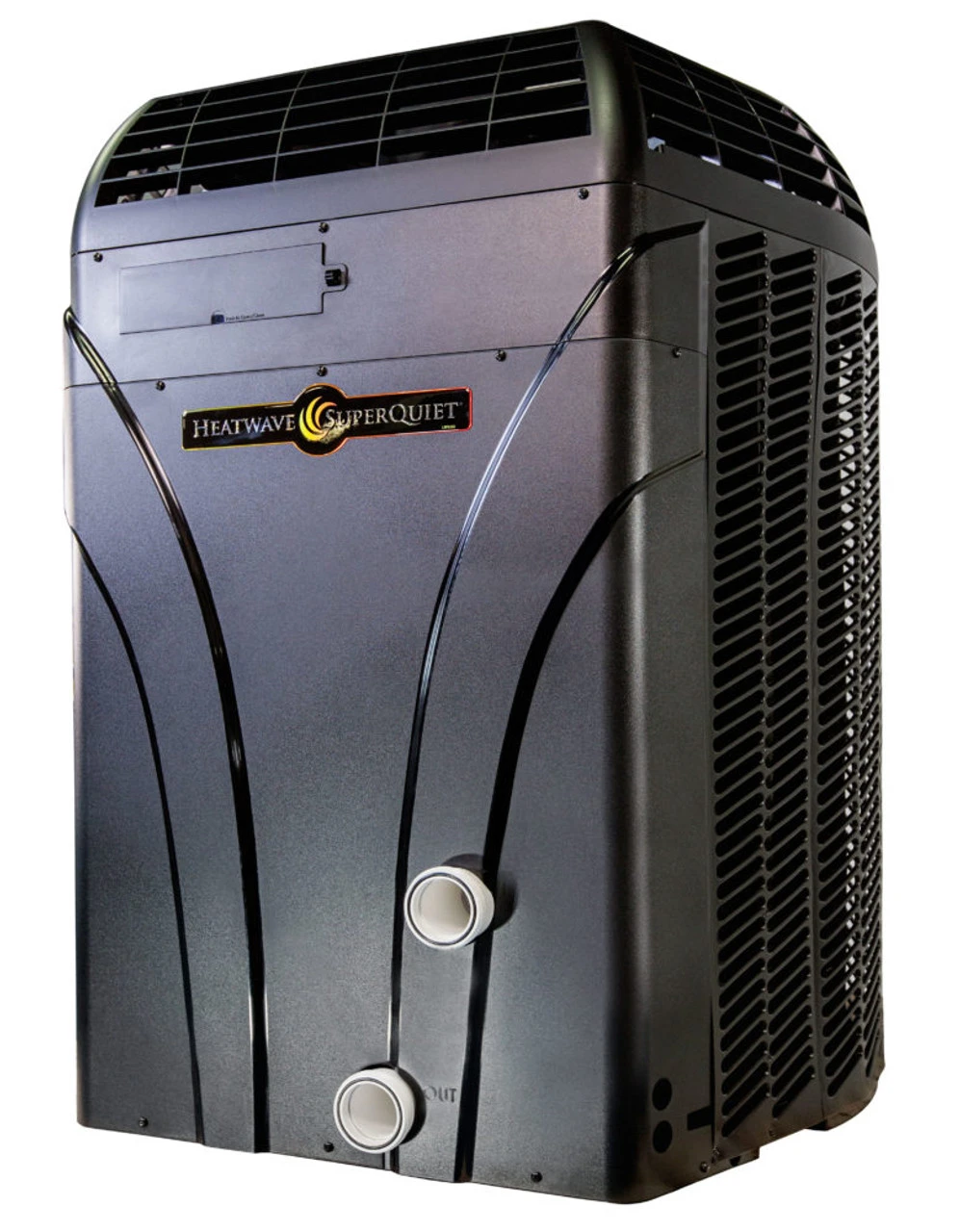

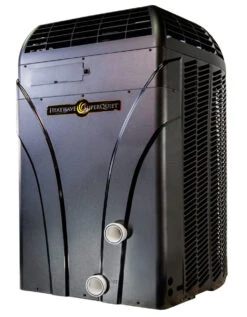

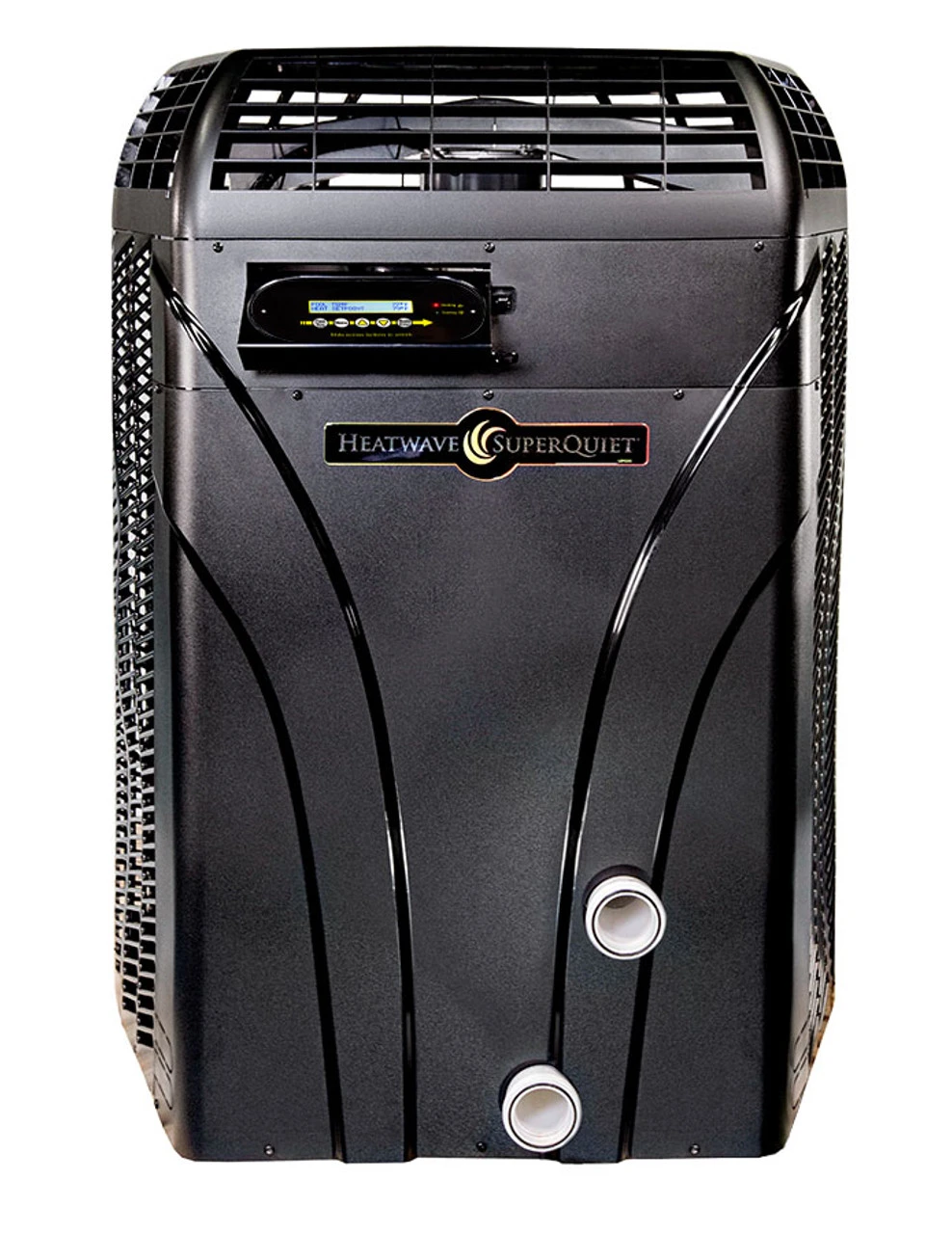

AquaCal HeatWave SuperQuiet SQ125 (Heat Only)

AquaCal HeatWave SuperQuiet SQ125 – Heat Only

With over 35 years of industry expertise, AquaCal pioneers quality standards in heat pumps. The AquaCal HeatWave SuperQuiet® SQ125 is exceptionally quiet and energy-efficient, extending your swim season affordably. It utilizes Scroll Compressor technology, digital controls, and a microprocessor-controlled defrost cycle. Backed by a Lifetime Warranty on the ThermoLink Titanium Heat Exchanger.

Pool Heat Pump Features:

• Suitable for all climates in the 48 contiguous states
• Quietest heat pump in its price range
• ThermoLink Titanium Heat Exchanger for optimal heating efficiency

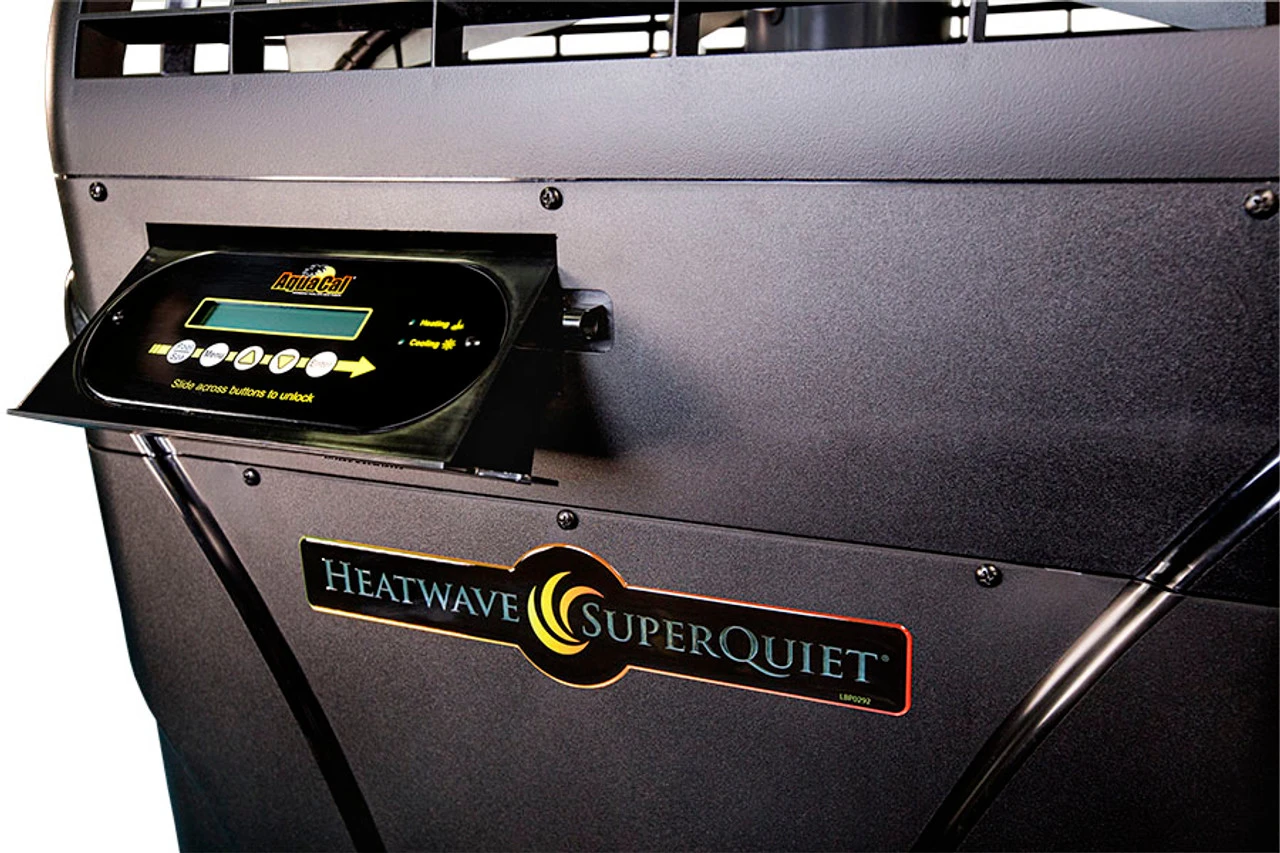

• Microprocessor-controlled with a digital display for easy operation
• AquaTop air flow vectoring ensures optimal component protection and airflow
• Rust and fade-proof cabinet for long-lasting durability
• Heat your pool for approximately 25% of the cost of gas heating
• PoolSync Ready: AquaCal Heat Pumps come intergrated with smart controls! Gain complete control over your entire pool system, fine tune settings, make equipment groups, tunr lights on or off, and set schedules. The AquaCal / AutoPilot PoolSync Wi-Fi Controller gives you more control over how you maintain your pool!
• Low Noise Output: Great for applications that require a pool heater that works efficently and does not make a ton of noise

AquaCal HeatWave SuperQuiet SQ125 Specs:

60 Hz	SQ125
BTUs (water temp/ambient air/relative humidity)
80/80/80	101,000
80/80/63	95,000
80/50/63	62,000
Coefficient of Performance (water temp/ambient air/relative humidity)
80/80/80	6.5
80/80/63	6.1
80/50/63	4.0
Refrigerant	R410A
Electrical
Heat or Heat & Cool	H
kW Input	4.6
Voltage/Hz/Phase A – 208-230/60/1 B – 200-230/60/3 E – 380-415/60/3 G – 460/60/3	A
Minimum/Maximum Fuse Size	A – 60
Minimum Circuit Ampacity	A – 40.5
Water Flow *A Heater Bypass Kit is required when flow rates exceed the maximum
Minimum/Maximum (gpm)	30/70
Physical
Weight (lbs)	258
Length x Width x Height (in)	34″ x 34″ x 44″
Shipping
Weight (lbs)	298
Length x Width x Height (in)	37″ x 36″ x 51″
Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity



Warranty Information:

• AquaCal HeatWave Super Quiet National Warranty
• AquaCal Parts Warranty

Instruction Manuals:

• Click Here to Open the AquaCal Heatwave SuperQuiet Installation Manual
• Click Here to Open the AquaCal Heatwave SuperQuiet Operation Manual

Looking for more information check out the AquaCal HeatWave SuperQuiet Product Brochure  or Not sure what heat pump is right for you? Use AquaCal’s Pool & Spa Savings Estimator!
