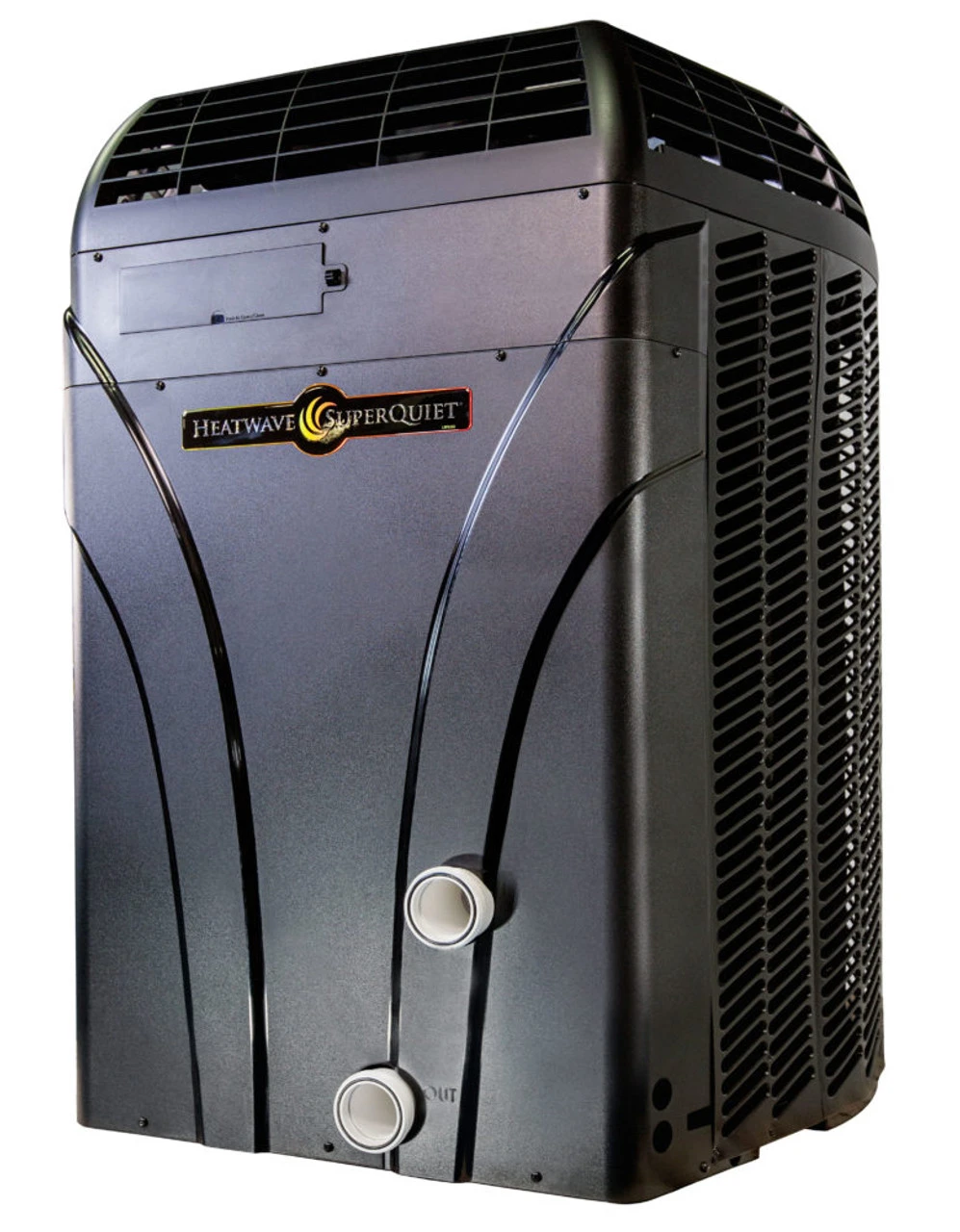

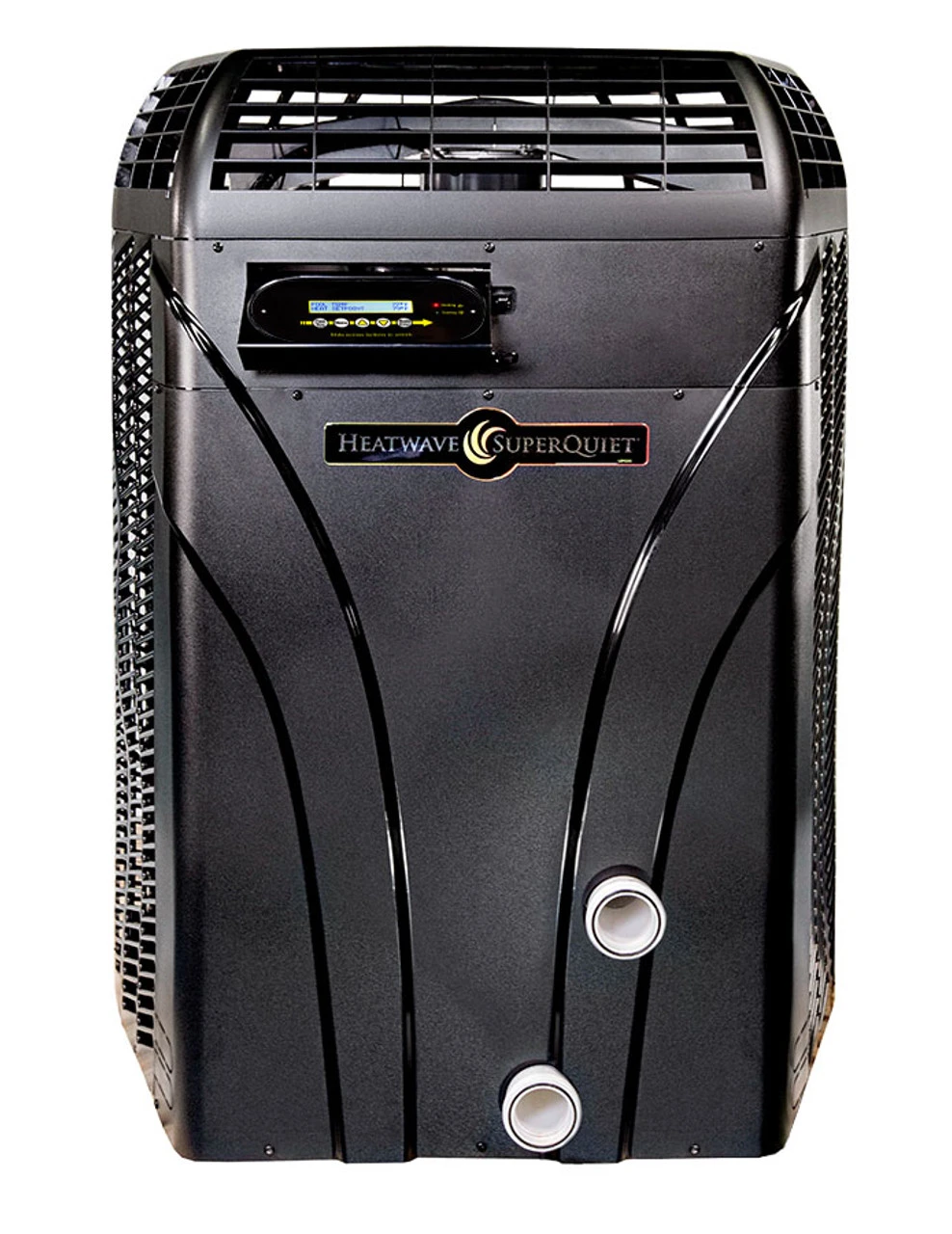

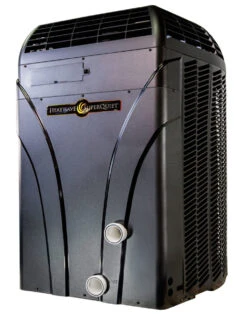

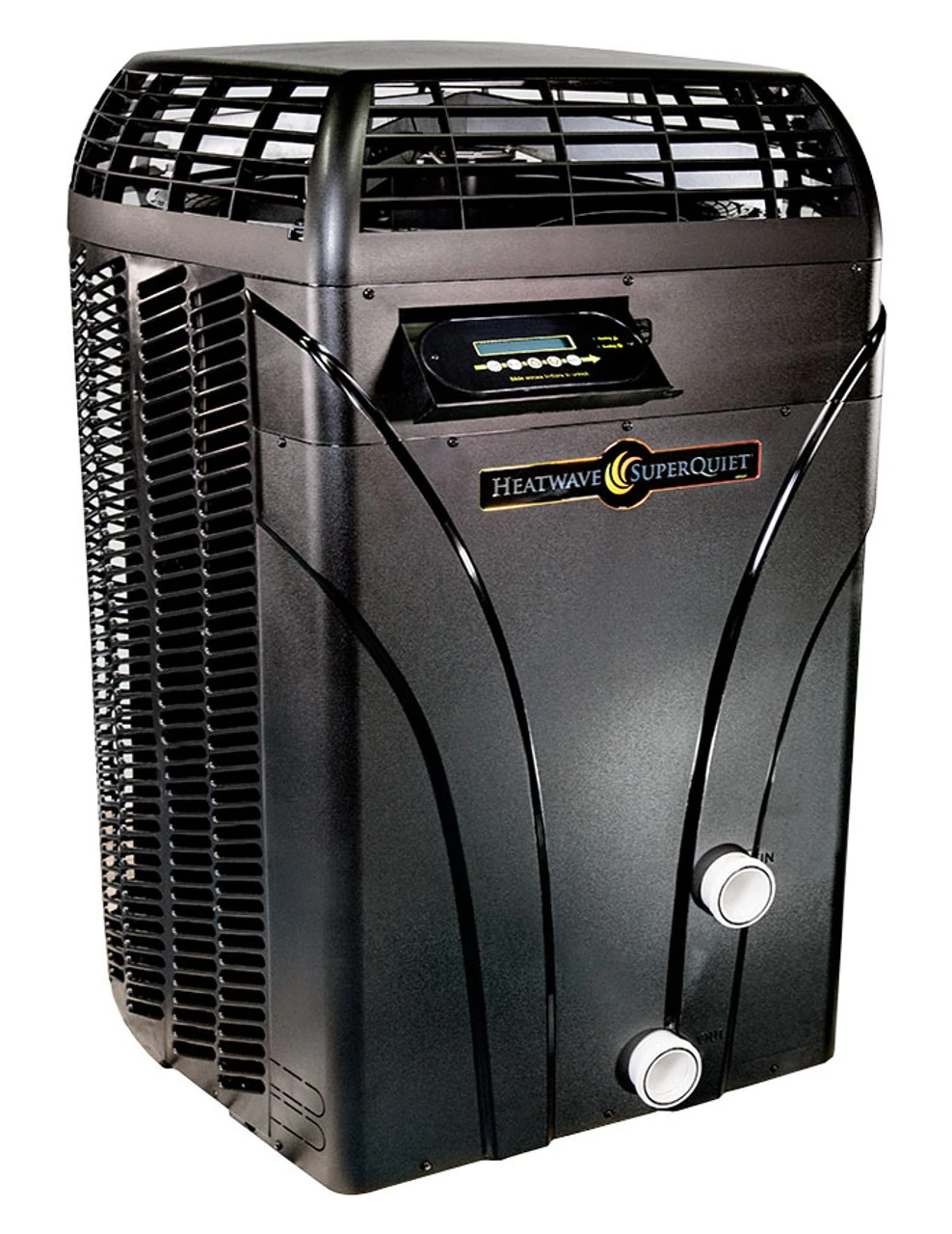

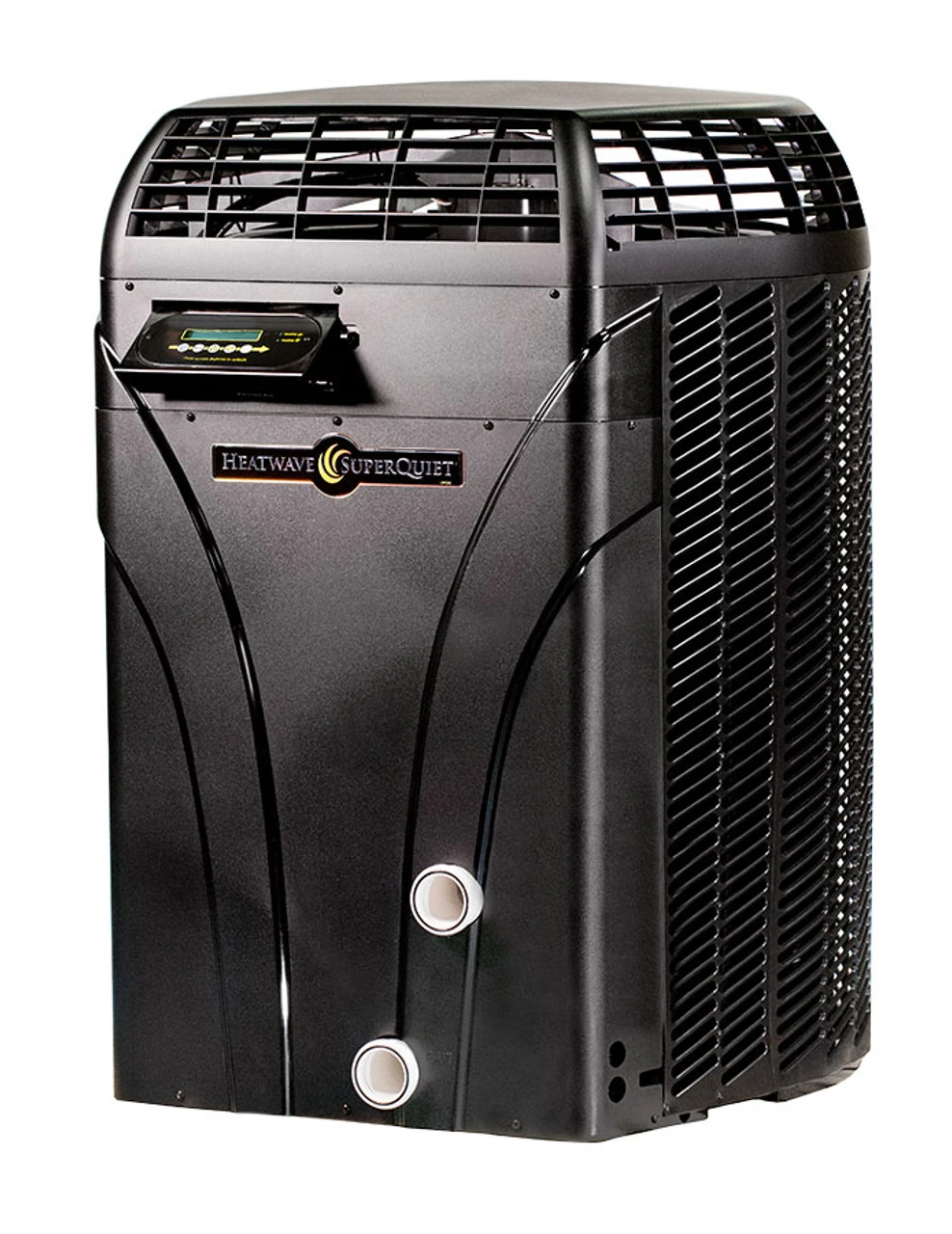

AquaCal HeatWave SuperQuiet SQ145 (Heat Only)

AquaCal HeatWave SuperQuiet SQ145 (Heat Only)

Introducing the New Look of Excellence: AquaCal HeatWave SuperQuiet SQ145 (Heat Only), the TOP selling and most sought after heat pump on the market. With a pure Titanium ThermoLink Heat Exchanger at its core, the HeatWave SuperQuiet Series offers you optimum return on your money. AquaCal expert engineers created one of the quietest and most energy efficient heat pumps ever made – The AquaCal HeatWave SuperQuiet SQ145.

Key Features:

1. Pure Titanium ThermoLink Heat Exchanger: Ensures optimal return on investment, providing durable and efficient heating.
2. Quietest in Its Class: Experience unmatched quietness during operation, elevating your pool environment.
3. Microprocessor-Controlled with Digital Display: User-friendly controls for precise temperature management.
4. Air Flow Vectoring: Safeguards components while ensuring maximum efficiency through optimal air flow.
5. Rust and Fade-Proof Cabinet: Built to last in harsh weather conditions, maintaining performance and aesthetics.
6. Cost-Effective Heating: Heat your pool at just 25% of the cost of gas heating, extending your swimming season affordably.
7. PoolSync Ready: Seamlessly control your heat pump and other PoolSync compatible products from your smartphone with the PoolSync Wi-fi controller for enhanced pool management.

Innovative Hydraulic Design:

• Patented design adds only 2 PSI at 45 gpm, enhancing compatibility with two-speed & variable speed pumps.
• Saves money with variable speed pumps by reducing required RPM for the same flow rate.
• Offers savings in single-speed pump applications by reducing run time needed for the same pool turnover rate.

Corrosion-Proof Cabinet:

• Louvered side panels protect the evaporator coil while ensuring efficient airflow.
• Rust-proof, fade-proof, and impact-resistant for long-lasting performance.
• Built-in drain pan for efficient condensate management.

Advanced Control and Connectivity:

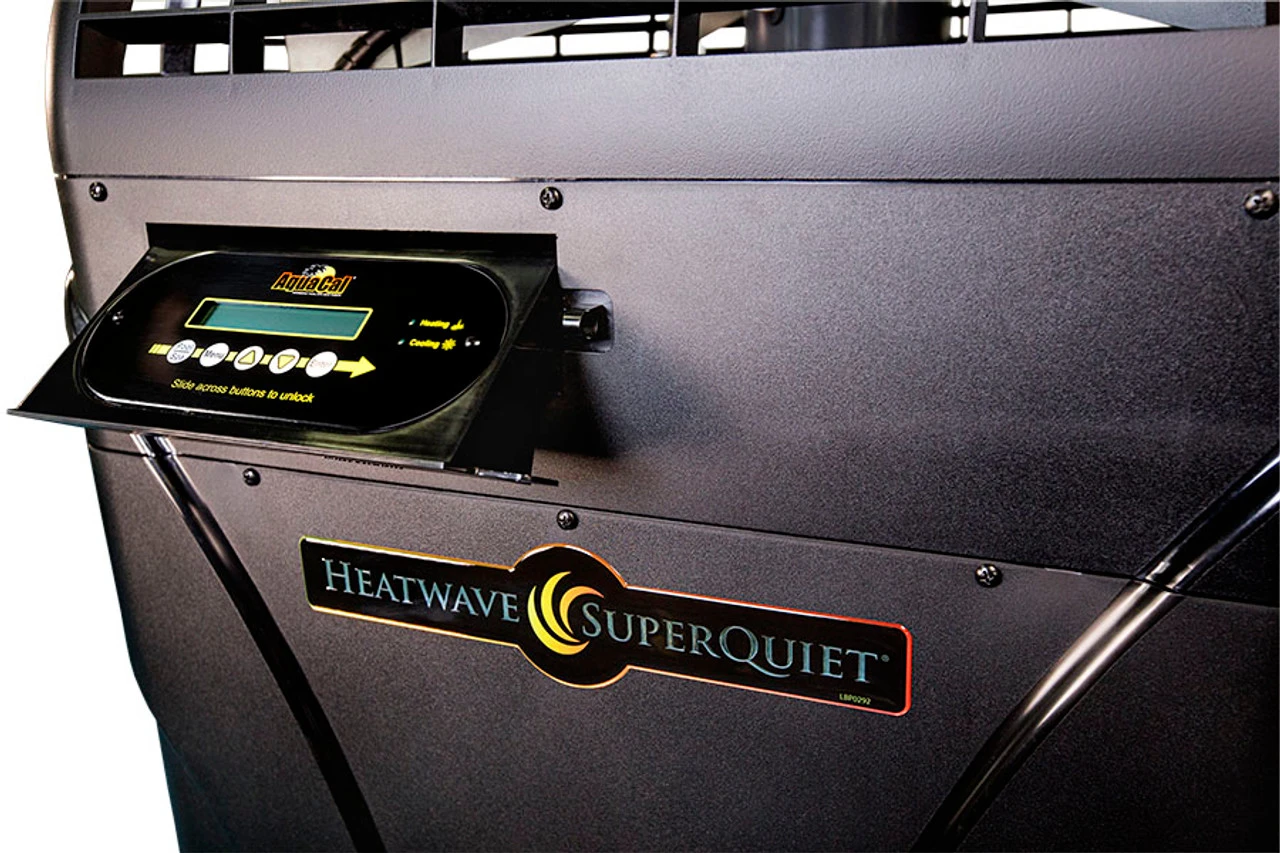

• Weather-protected control with full-text display for easy menu navigation and unit status monitoring.
• Compatible with most external controllers for heating and cooling modes.
• Program common variable speed pumps using the heat pump Smart Controller (HP9) or (HP11).

AquaCal SQ145 Specs:

60 Hz	SQ145
BTUs (water temp/ambient air/relative humidity)
80/80/80	121,000
80/80/63	115,000
80/50/63	75,000
Coefficient of Performance (water temp/ambient air/relative humidity)
80/80/80	7.1
80/80/63	6.8
80/50/63	4.2
Refrigerant	R410A
Electrical
Heat or Heat & Cool	H
kW Input	5.1
Voltage/Hz/Phase A – 208-230/60/1 B – 200-230/60/3 E – 380-415/60/3 G – 460/60/3	A, B & G
Minimum/Maximum Fuse Size	A – 60 B – 50 G – 20
Minimum Circuit Ampacity	A – 42.1 B – 31.0 G – 14.2
Water Flow *A Heater Bypass Kit is required when flow rates exceed the maximum
Minimum/Maximum (gpm)	30/70
Physical
Weight (lbs)	305
Length x Width x Height (in)	34″ x 34″ x 44″
Shipping
Weight (lbs)	345
Length x Width x Height (in)	37″ x 36″ x 51″
Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity



Warranty Information

• AquaCal HeatWave Super Quiet National Warranty
• AquaCal Parts Warranty

Instruction Manuals:

• AquaCal Heatwave SuperQuiet Installation Manual
• AquaCal Heatwave SuperQuiet Operation Manual

The AquaCal HeatWave SuperQuiet SQ145 Heat Pump is engineered by expert engineers to transfer free heat from the air to your pool, extending your swimming season cost-effectively. Enjoy quiet operation with Scroll Compressor technology and maximize your pool investment with ThermoLink technology for unbiased temperature control. With a rust-proof and impact-resistant cabinet, digital controls, and a microprocessor-controlled defrost cycle, this heat pump is designed for convenience and reliability.

Looking for more information check out the AquaCal HeatWave SuperQuiet Product Brochure or Not sure what heat pump is right for you? Use AquaCal’s Pool & Spa Savings Estimator!
