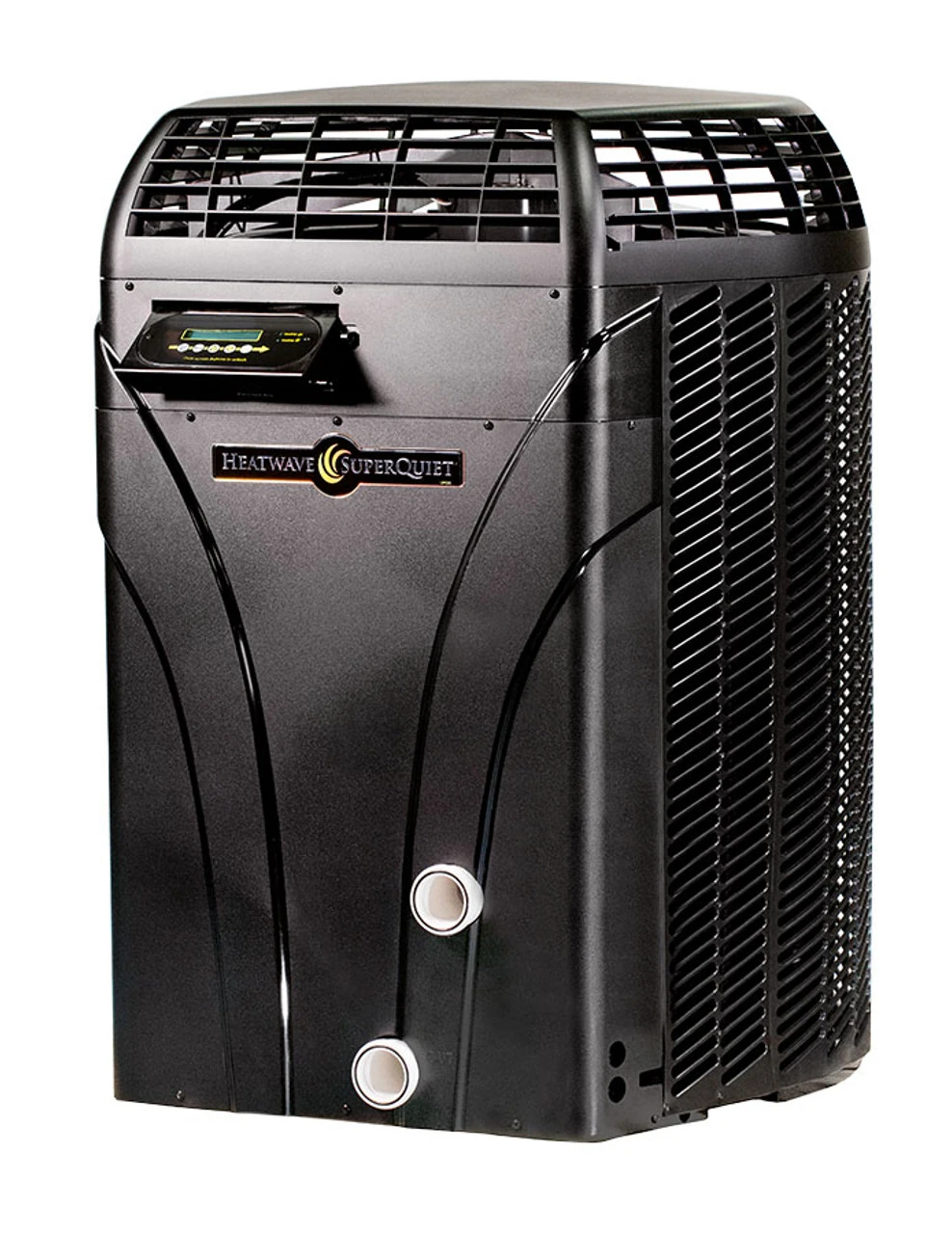

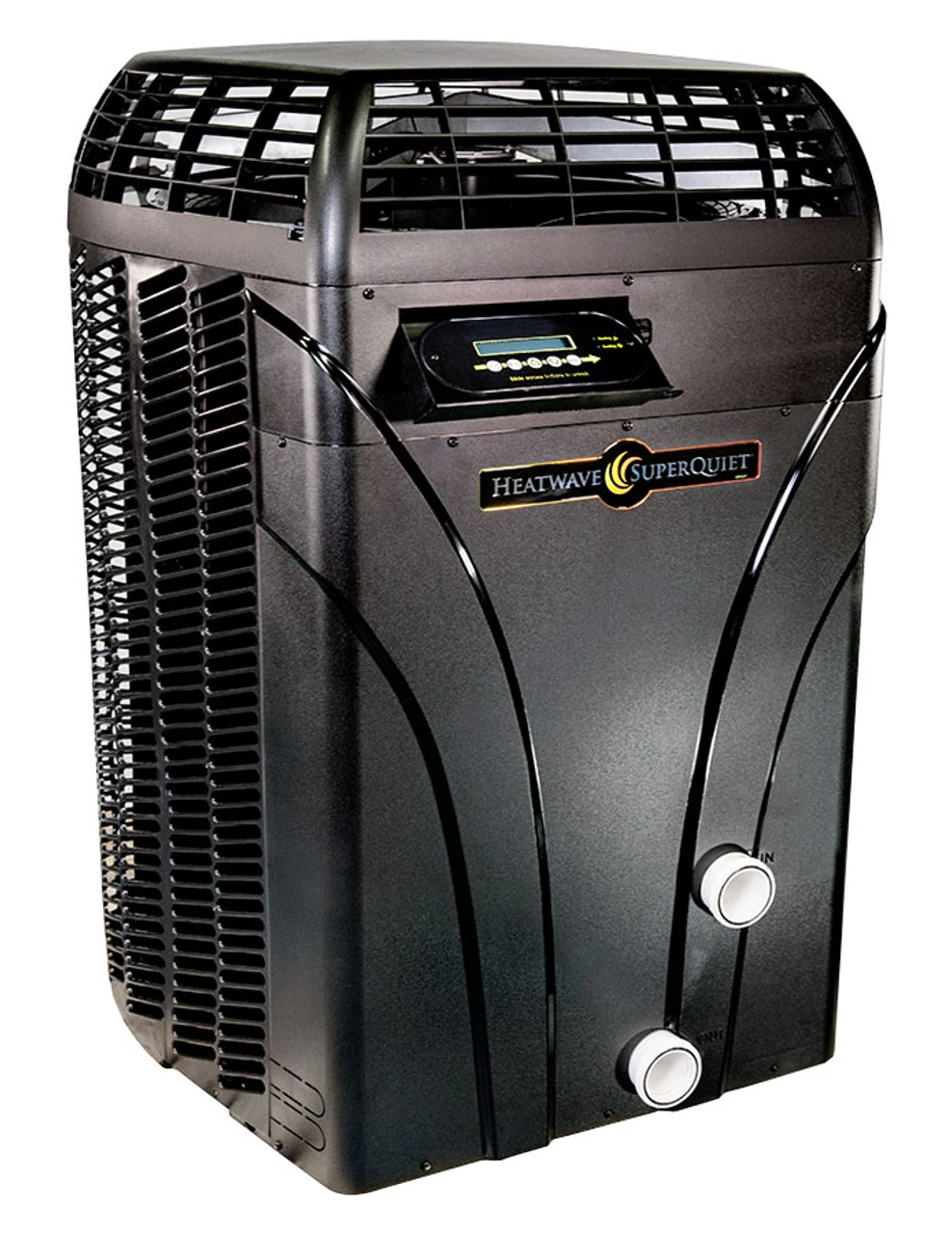

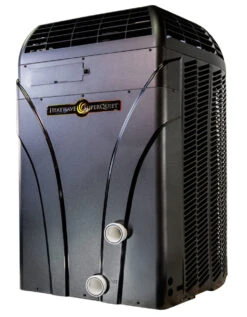

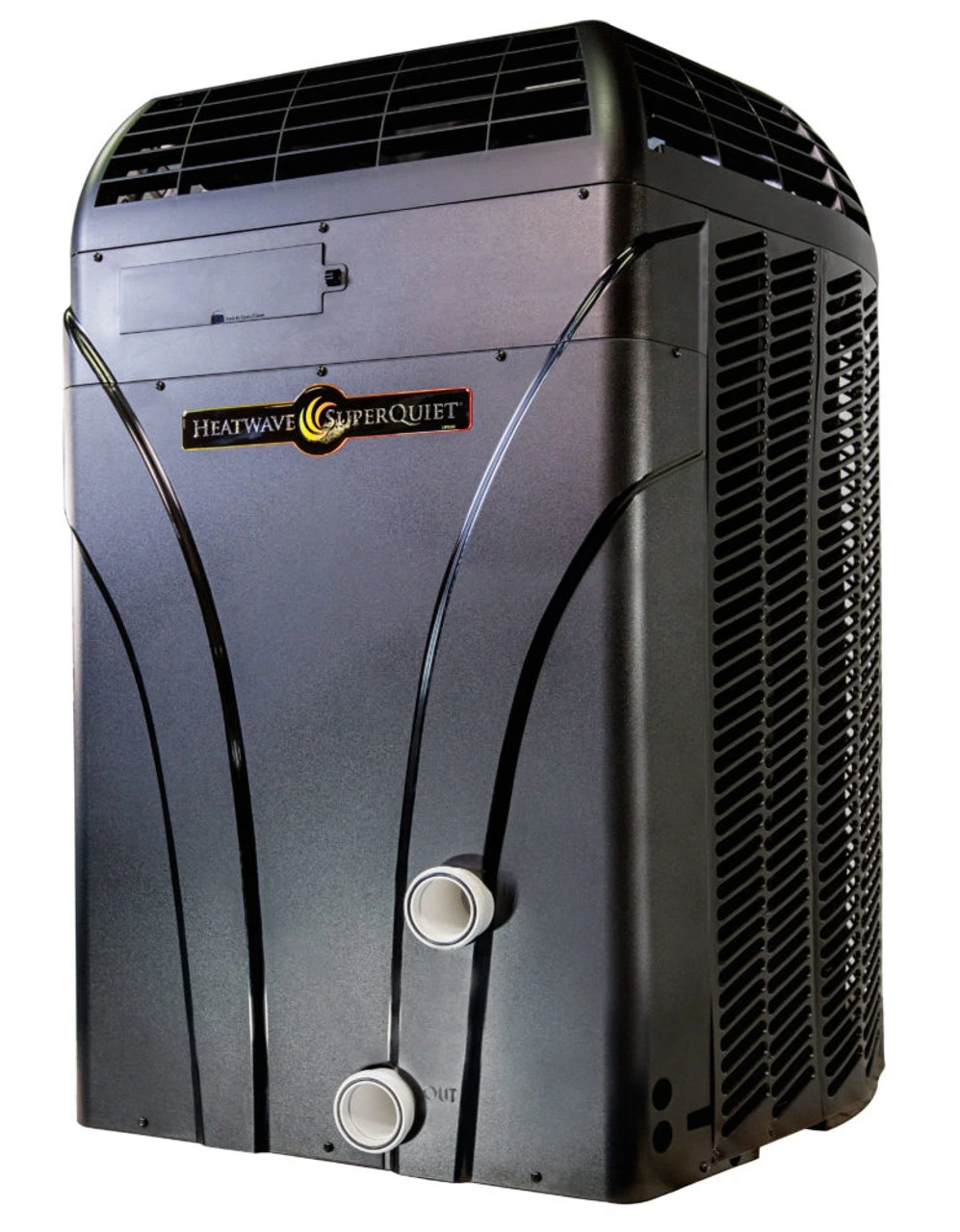

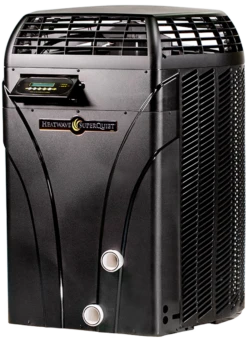

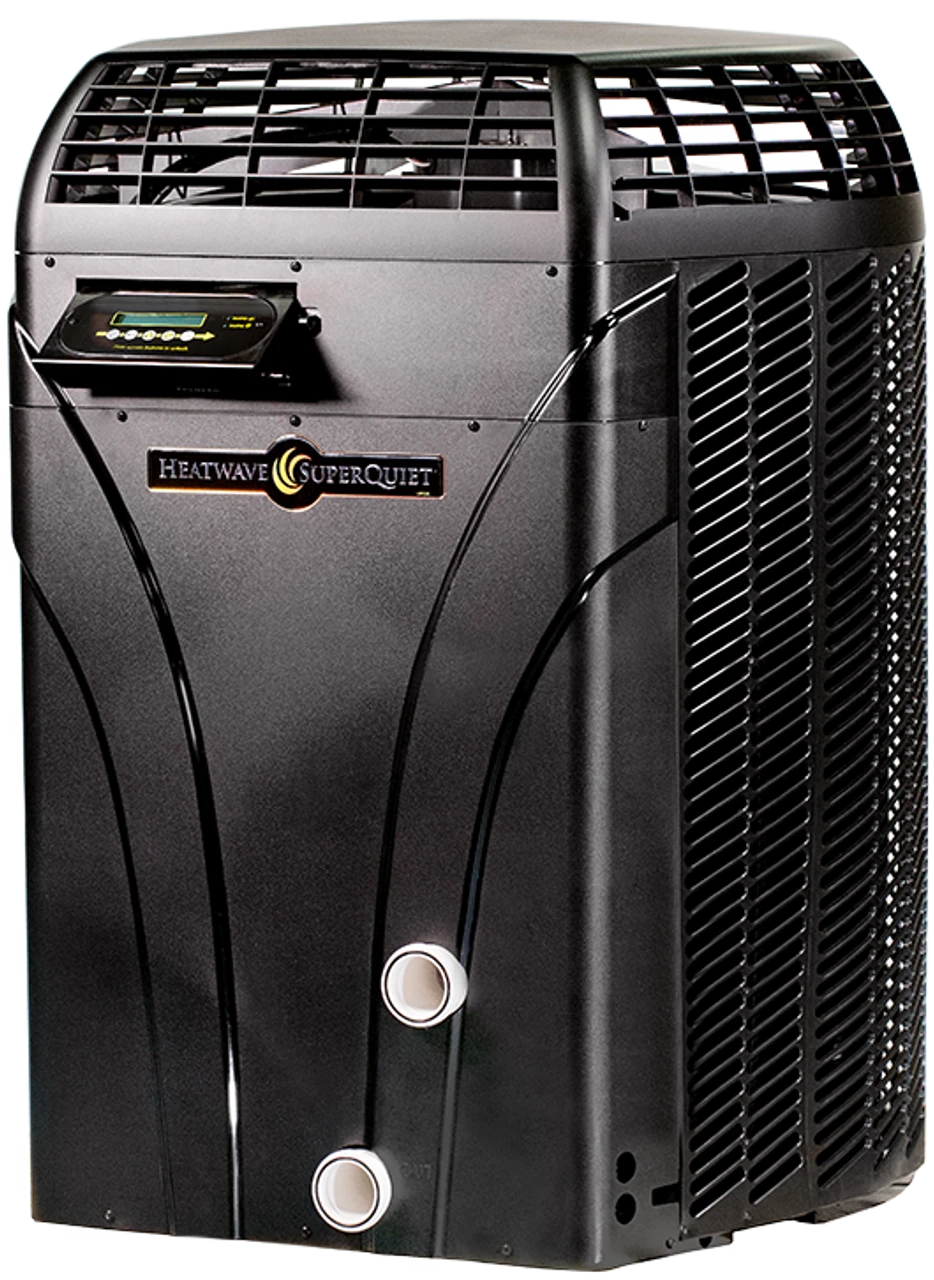

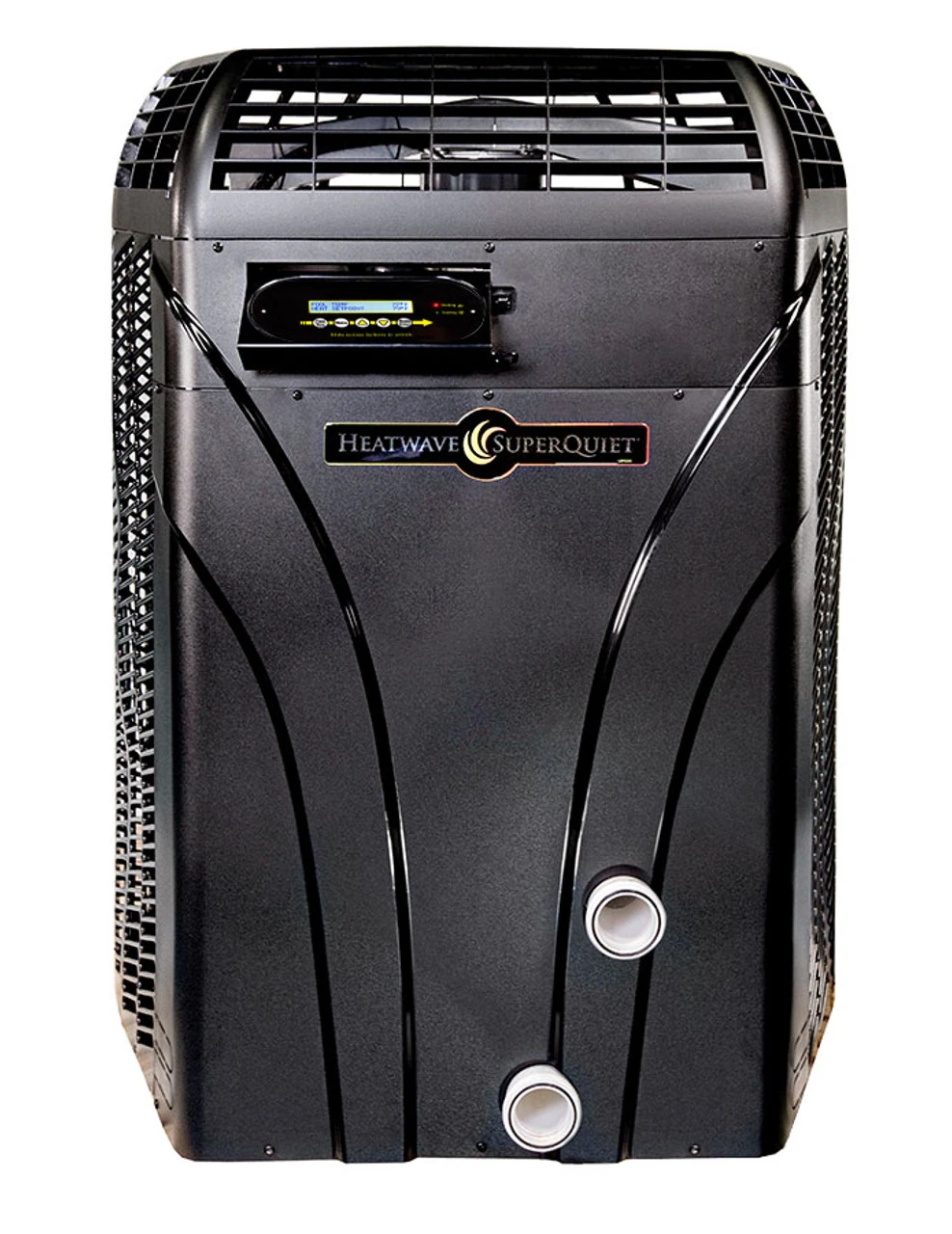

AquaCal HeatWave SuperQuiet SQ166R Icebreaker Heat Pump With Cooling Feature

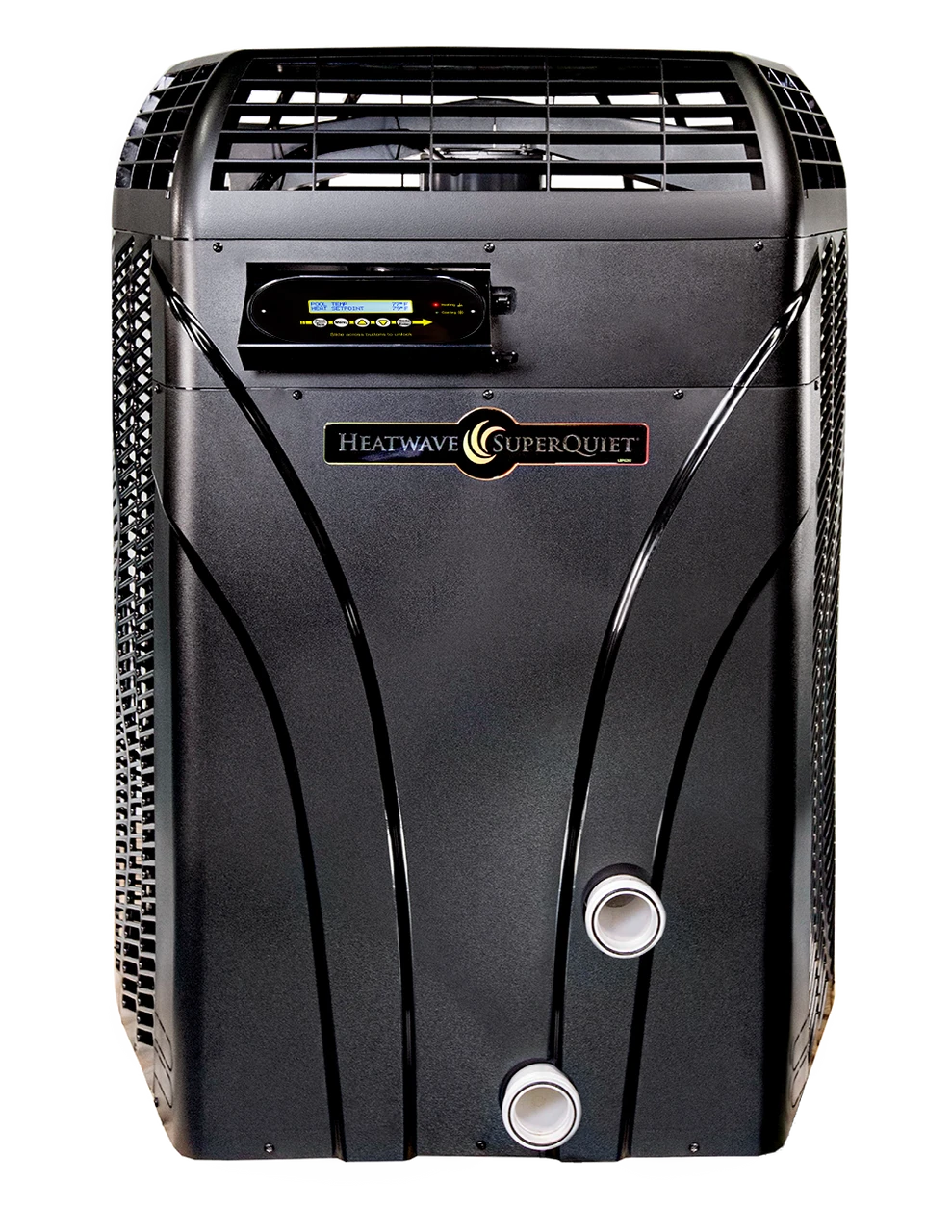

AquaCal HeatWave SuperQuiet SQ166R Icebreaker Heat Pump

Introducing the new HeatWave SuperQuiet® heat pump series, featuring a Titanium ThermoLink® Heat Exchanger for peak performance and savings. Certified by AHRI, these pumps are ideal for extending swim seasons with ICEBREAKER® models. AquaCal, with over 35 years of industry experience, designs the AquaCal HeatWave SuperQuiet® Icebreaker SQ166R, known for its quietness and efficiency.

Key Features:

• Icebreaker® technology for versatile temperature settings
• Quietest in its class with microprocessor control and digital display
• Rust-proof cabinet and Scroll Compressor technology for quiet operation
• Patented ThermoLink technology optimizes savings with variable speed pumps
• Weather-resistant controls and defrost cycle for year-round use
• PoolSync Ready: Seamlessly control your heat pump and other PoolSync compatible products from your smartphone with the PoolSync Wi-fi controller for enhanced pool management.
• Low Noise Output: Great for applications that require a pool heater that works efficently and does not make a ton of noise

Additional Benefits:

• Patented hydraulic design enhances pump compatibility
• Reduces RPM for cost-effective operation with variable speed pumps

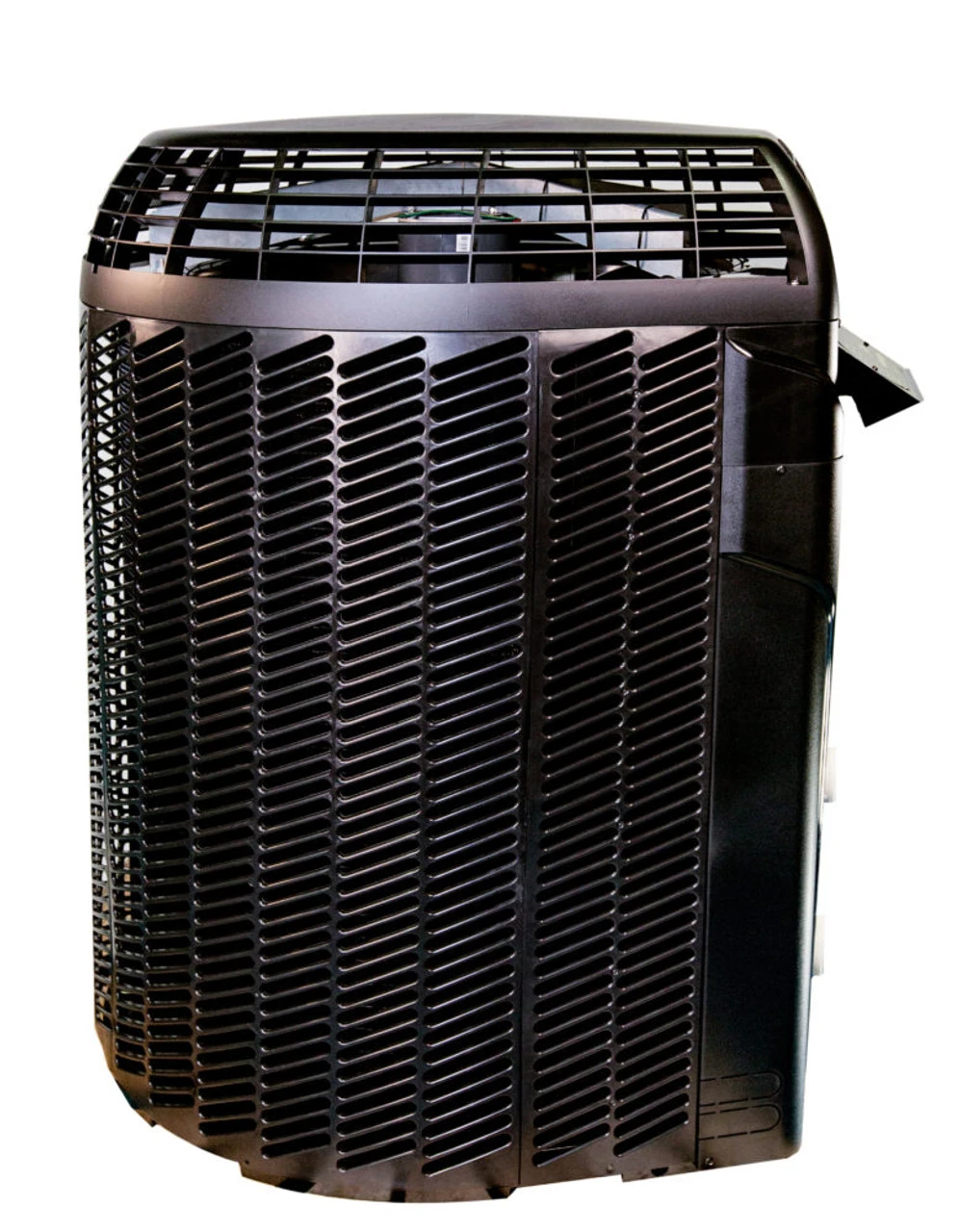

• Louvered side panels protect the evaporator coil and ensure efficient airflow
• Weather-protected control with full text display for easy operation
• Compatible with most external controllers for heating and cooling mode

AquaCal HeatWave SuperQuiet SQ166R IceBreaker Specs:

60 Hz	SQ166R
BTUs (water temp/ambient air/relative humidity)
80/80/80	126,000
80/80/63	120,000
80/50/63	82,000
Coefficient of Performance(water temp/ambient air/relative humidity)
80/80/80	5.6
80/80/63	5.3
80/50/63	4.0
Refrigerant	R410A
Electrical
Heat or Heat & Cool	H & C
kW Input	6.6
Voltage/Hz/Phase A – 208-230/60/1 B – 200-230/60/3 E – 380-415/60/3 G – 460/60/3	A, B, E & G
Minimum/Maximum Fuse Size	A – 60 B – 50 E – 30 G – 25
Minimum Circuit Ampacity	A – 42.1 B – 33.3 E – 18.4 G – 16.2
Water Flow *A Heater Bypass Kit is required when flow rates exceed the maximum
Minimum/Maximum (gpm)	30/70
Physical
Weight (lbs)	310
Length x Width x Height (in)	34″ x 34″ x 44″
Shipping
Weight (lbs)	350
Length x Width x Height (in)	37″ x 36″ x 51″
Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity



Warranty Information:

• AquaCal HeatWave SuperQuiet IceBreaker Warranty
• Aquacal Parts Warranty

Instruction Manuals:

• AquaCal Heatwave SuperQuiet Installation Manual
• AquaCal Heatwave SuperQuiet Operation Manual

Not sure what heat pump is right for you? Use AquaCal’s Pool & Spa Savings Estimator!
