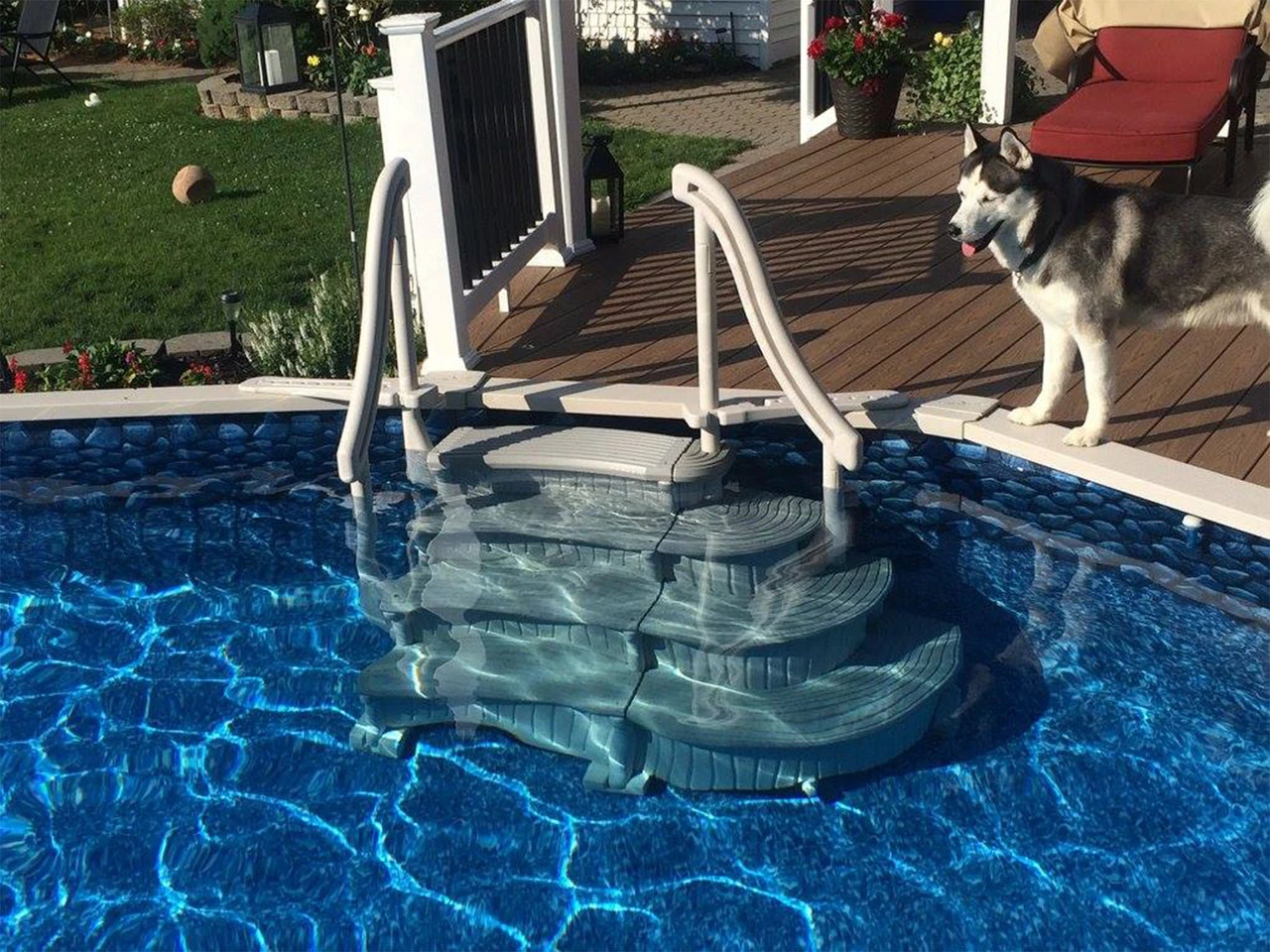

Confer Plastics Curve InPool Step System For Above Ground Pools

Confer Plastics CCX-AG and CCX-ADD Above Ground Curve In-Pool Steps

CCX-AG Key Features

• Stylish Look: Features a “wedding cake” design that adds visual appeal.
• Customizable Assembly: Above ground steps can curve inward or outward.
• Graceful Handrails: Eye-catching, sloping handrails for added safety and style.
• Two-Tone Color: Grey treads with warm gray sidewalls and handrails match any pool decor.
• Adjustable Base Pads: Ensure stability on uneven pool floors.
• Sturdy Build: Supports up to 400 lbs, with an option to add 20 lbs of sand for stability.

CCX-AG Specifications

• Tread Width: 27 inches
• Tread Depth: 10 inches
• Riser Height: 11 inches
• Unit Depth: 32 inches
• Handrail Height: 30 inches (from top step)
• Height to Top Tread: 36 inches (in-ground), 47 inches (above ground)
• Mounting Bracket Length: 24 inches
• Overall Width: 38 inches
• Complete System Width: 58 inches
• Warranty: 5-year factory warranty
• Compliance: Meets ISPSC 2021 standards

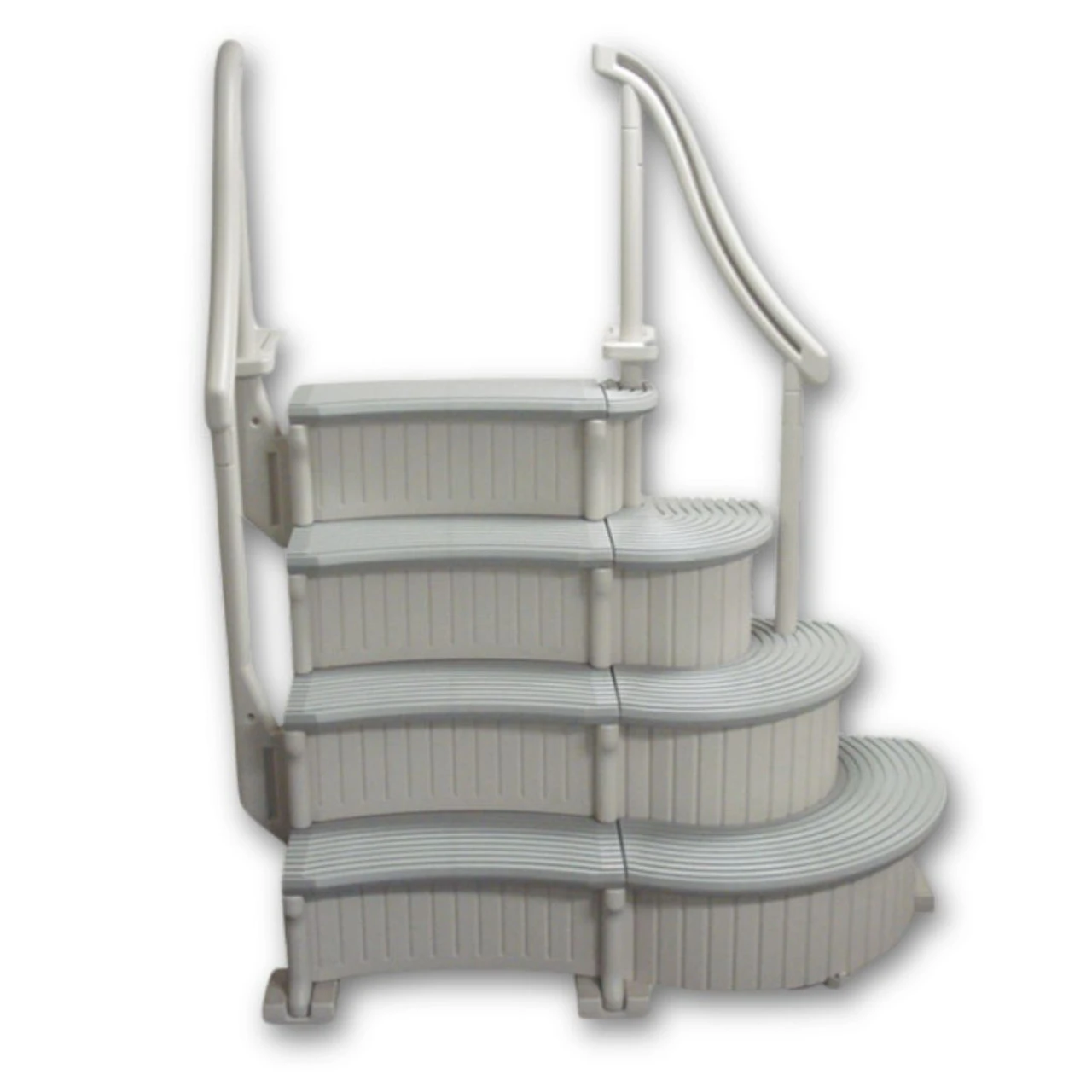

CCX-ADD (Curve add-on piece) Features

• Complete Curve System: Attaches to the right side of the base step to create a comprehensive Curve Step System.
• Enhanced Accessibility: Expands the width of your pool steps to 58 inches, providing more room for safe and easy entry and exit.
• Built to Last: Constructed in compliance with ISPSC 2021 standards for durability and safety.
• Generous Size: Together the CCX-ADD and CCX-AG complete systems total width is 58″
• Color: Warm Gray

Download the Confer CCX-AG/CCX-ADD InPool Steps Instruction Manual
