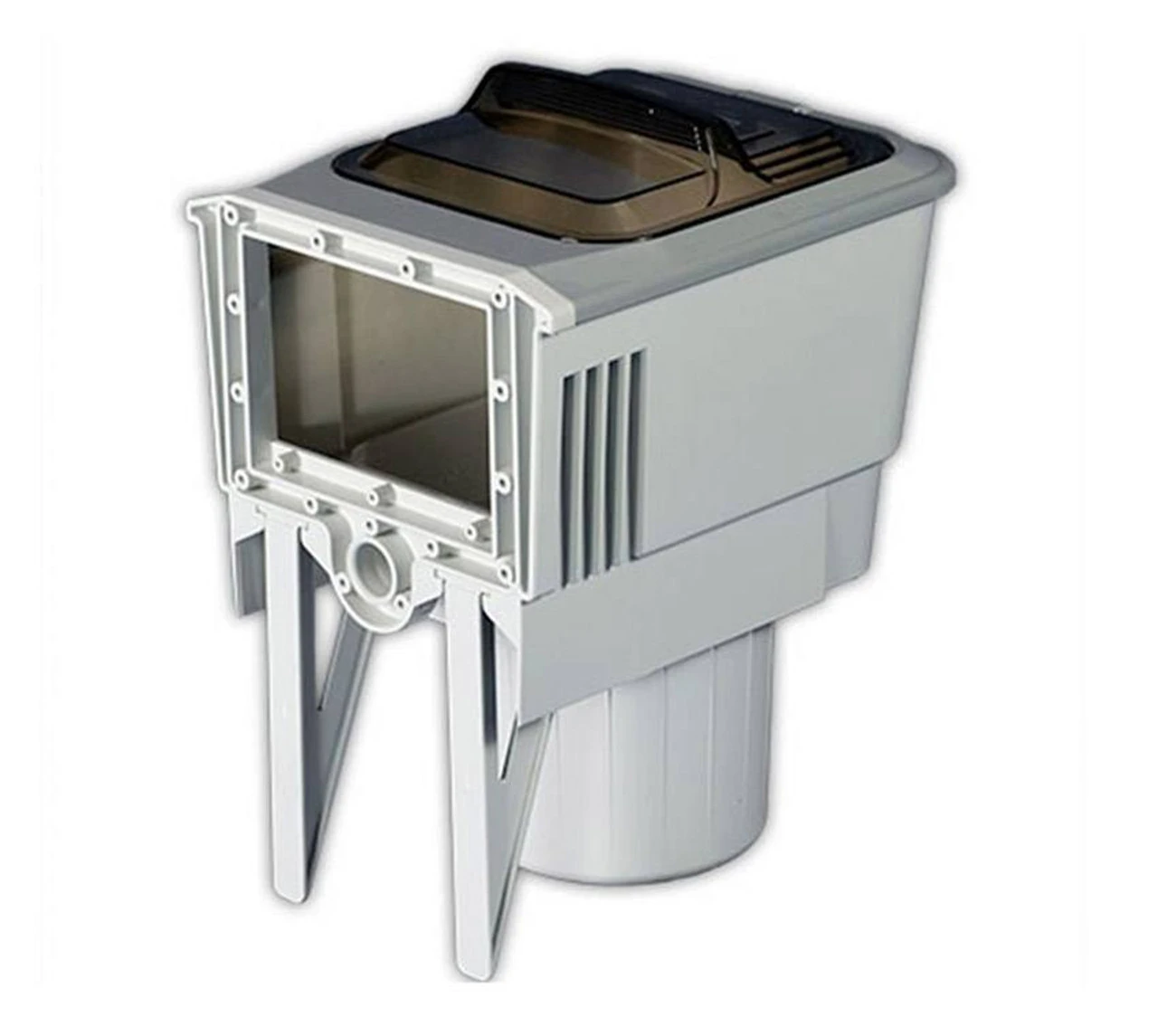

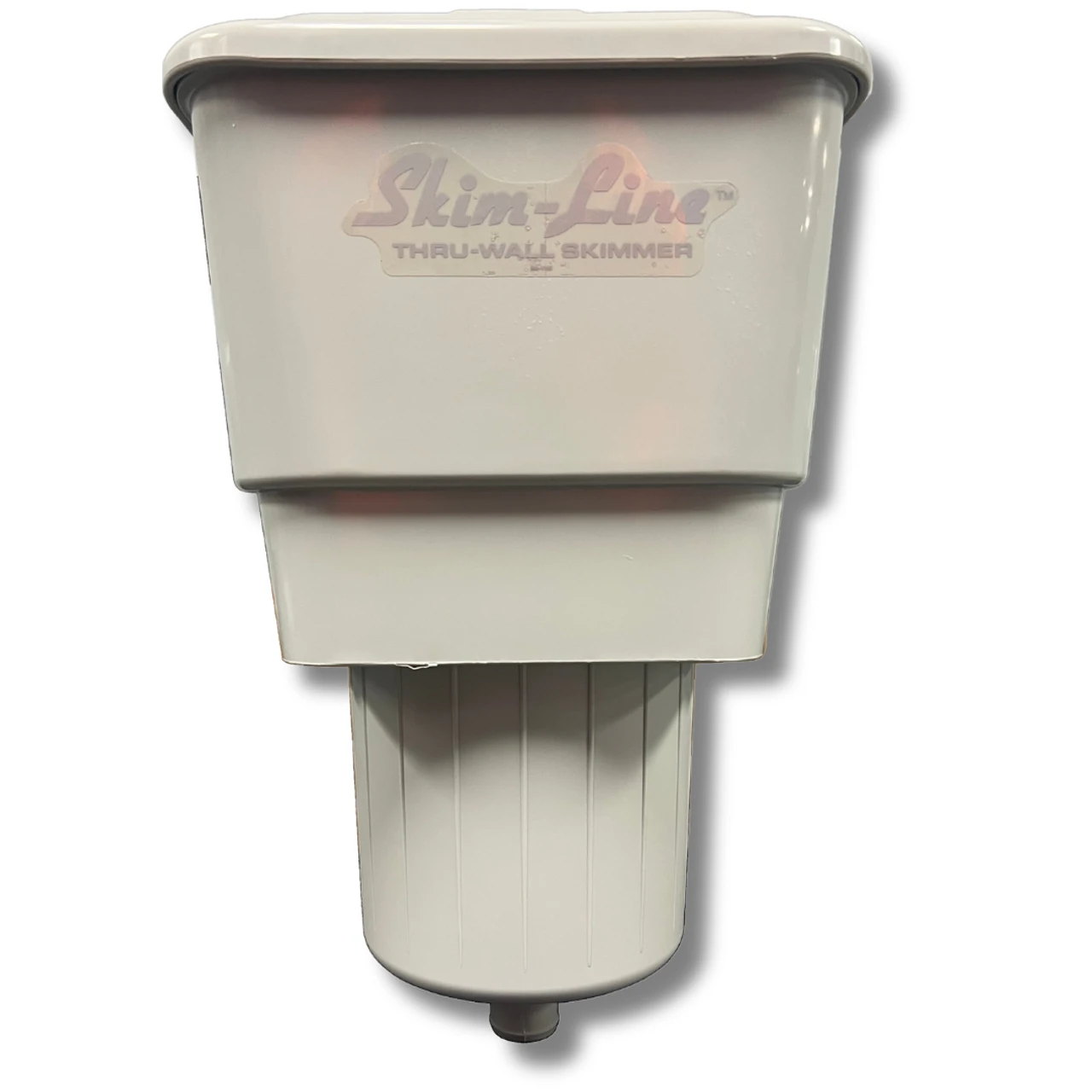

Skim-Line Doughboy & Embassy Pools Deluxe Gray Pool Skimmer

• Massive snap-in dual braces offer even distribution of weight on the pool wall.
• Heavy-duty see-thru lid serves as a vacuum plate; allows you to see the leaf basket.
• Skimmer body available in gray

Deluxe Skim-Line Pool Skimmer Dimensions

Skimmer Total Length Top to Bottom: 19-3/4″

Skimmer Max Width 12″ ( 1 Foot )

Skimmer Max Depth 14-11/16″

Included Parts:

ITEM	P/N	QTY	DESCRIPTION	ITEM	P/N	QTY	DESCRIPTION
1	1107-1356	1	Lid & Caution Label Assy.	17	330-1008	4	#8 x 1/2″ Screw
2	321-1002	1	Basket Handle	18	340-1253	1	Vacuum Hose Adaptor
3	340-1139	1	Basket	19	330-1004	15	#12 x 27/32″ Screw
4	1116-1045	1	Basket Assembly	20	340-1274	1	Faceplate
5	340-2032	1	Gray Cover	21	307-1029	1	Upper Faceplate U-Gasket
6	1121-1704	1	Deluxe Skimmer & Decal Assy.	22	307-1030	1	Lower Faceplate U-Gasket
7	340-2044	2	Support Brace	23	1119-1032	1	Weir Float
8	340-1593	1	Return Fitting Cover	24	340-1173	1	Weir Hinge
9	348-1027	1	Eyeball	25	1119-1033	1	Weir Assembly
10	340-1594	1	Shut-off Disc	26	365-1850	1	Owner’s Guide
11	340-1592	1	Return Fitting Adaptor	27	—	1	Warranty Card
12	307-1031	1	Return Fitting U-Gasket	28	360-1977	1	Operating Instructions Label
13	340-1591	1	Return Fitting Body	29	360-1795	1	Caution Label
14	340-1595	1	Eyeball Insert
15	348-1028	1	Vac Port Cover
16	340-1271	1	Vac Port Cover Retainer

Skim-Line Deluxe Thru-Wall Skimmer 0-2094-015 Owner’s Manual
